Rated voltage: 25kv
End fitting type: ball & socket, clevis & tongue, cap, flange, customized fitting...
International Standard: IEC61952, IEC61109, IEC62217
Material: HTV silicone rubber, fiberglass rod, forged steel end fittings

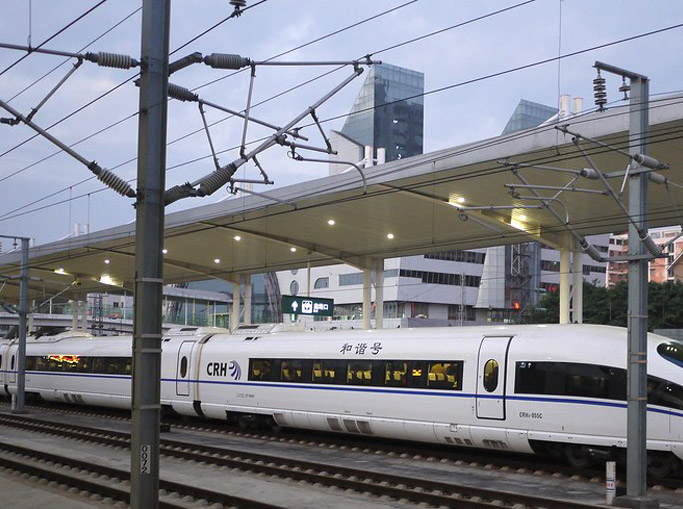

Composite electrical railway insulators are vital for overhead catenary systems in electrified railways, providing insulation and mechanical support to conductors.
We are one of the first companies of getting the CRCC certificate which proves we have the right to supply composite railway insulator to China railways Corporation and our product is enough qualified to suit the technical requirement of China railway. Our company is the appointed enterprise by ministry of railways to produce composite electrical railway insulator. We also export a lot to UK, France and some other European railway companies.

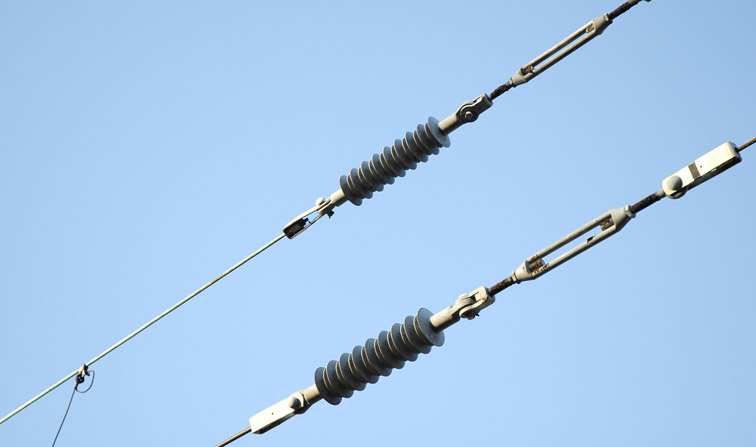

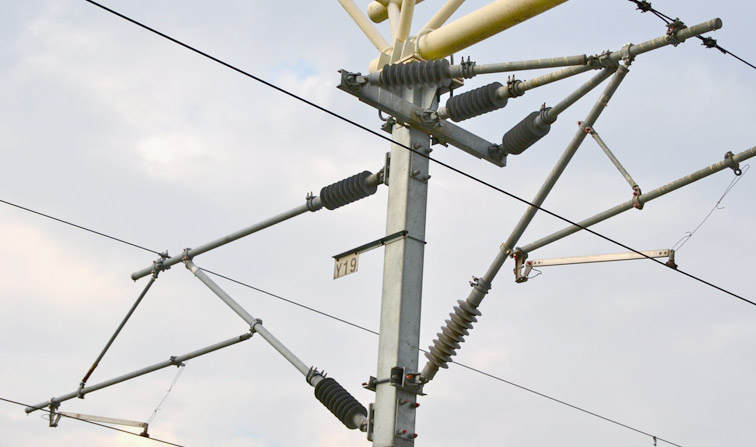

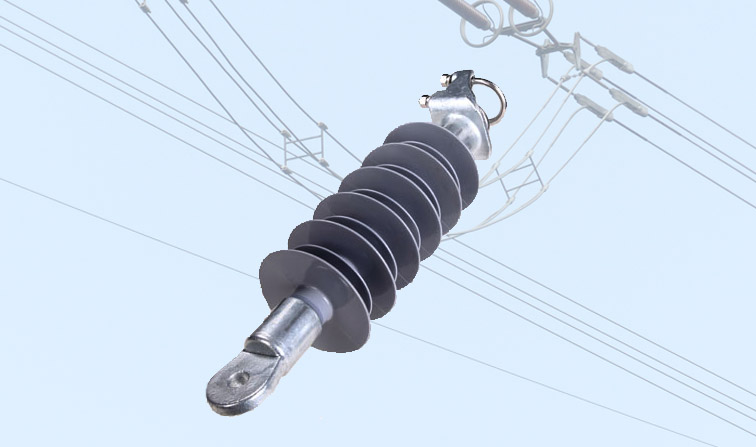

Composite railway insulators have two types. One is suspension type, which is used for tension service, can be ball and socket type or clevis and tongue type. Another is post type which is used to support conductor and insulate like cross arm.
Essential parameters for catenary railway insulators:
>creepage distance
>dry acring distance if important
>section length or height
>specified cantilever load
>specified tension load
>end fitting types
>end fitting assembling dimensions
Except the above, other special requirements by the end user are needed.
Packing: cartons or wooden cases with pallet, suitable for seafreight or airfreight.
Production cycle: 30-45 days
